Description
Technical Sheet:

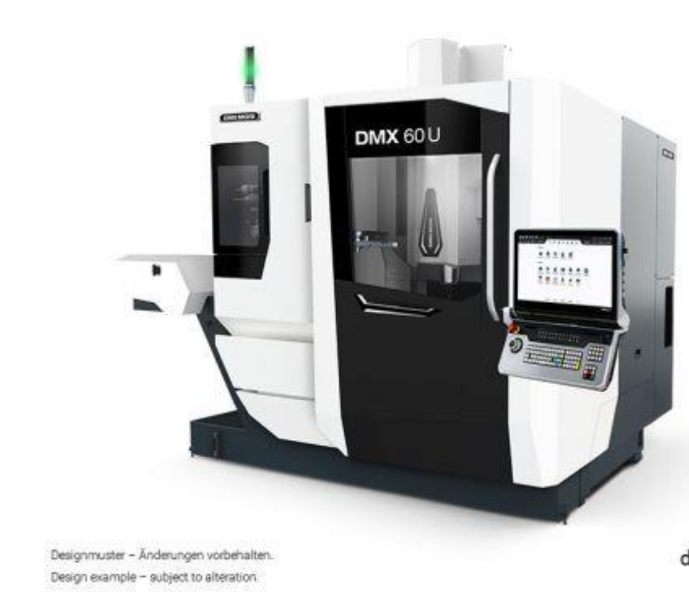

Machine Concept
- Universal 5‑axis machining centre (3+2 configuration)
- Cross‑slide design with dual support for high rigidity and thermal stability
- Monolithic machine bed, roller guides on all axes
Working Area
- Axis travels: X 600 mm / Y 600 mm / Z 510 mm
- Rotary axes: B –15° to +110°, C 360° continuous
- Table diameter: Ø 630 mm (usable 500 mm)
- Max table load: 300 kg
Spindle
- Installed option: speedMASTER 20,000 rpm spindle
- Power: 35 kW (40% DC) / 25 kW (100% DC)
- Torque: 130 Nm (40% DC) / 86 Nm (100% DC)
- Tool interface: HSK‑A63 (optional installed)
- Oil‑air lubrication + spindle chiller (3.3 kW)
Feed & Dynamics
- Rapid traverse: 42 m/min in X/Y/Z
- Direct measuring system on all linear axes
- Positioning accuracy (X/Y/Z): A = 6 µm, repeatability R = 5 µm
Tool Magazine
- Installed option: 60‑tool magazine
- Max tool Ø: 80 mm (130 mm with free adjacent pockets)
- Max tool length: 300 mm
- Max tool weight: 8 kg
- Chip‑to‑chip time: 9.5 s (with ATC shutter)
Coolant & Chip Management
- Internal coolant supply: 20 bar, flow up to 23 l/min
- Chip conveyor (scraper type), tank capacity 200 L
- Air‑blast through spindle
- RotoClear window installed
Measurement & Monitoring
- Workpiece probe: Heidenhain TS 460
- Tool measurement: BLUM LC50-DIGILOG
- Machine Protection Control MPC 2.0
Automation Preparedness
- Machine preparation for PH 150 / PH Cell with EROWA interface
- Automatic side door + PROFINET robot interface
Control
- CELOS X with Siemens SINUMERIK ONE, 24″ ERGOline multitouch panel
- Connectivity: NETservice, Service Agent
Dimensions & Weight
- Machine footprint (with 20‑bar package, ATC60): 3618 × 3660 × 2855 mm
- Required installation space: 4850 × 5550 mm
- Base machine weight (ATC60): ~7820 kg
Power Consumption / Electrical Requirements
- Power input: 55 kVA
- Max current: 90 A
- Pre‑fuse: 100 A at 400 V
- Operating voltage: 400 V / 230 V, 50/60 Hz, ±10%
