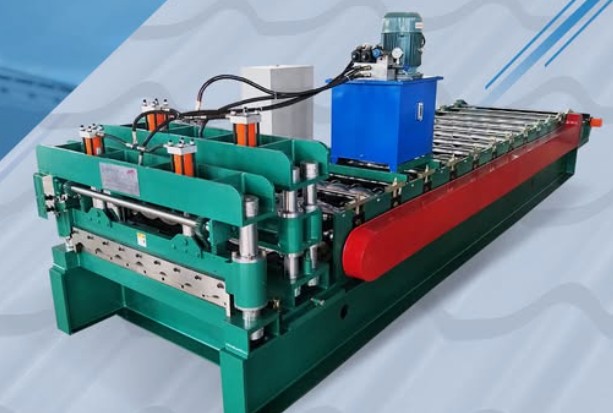

DLY International Import and Export Limited (DLY METAL ROOFING MACHINE) - Roll Forming Machine - Double layer machine TR 10+Tile

DLY International Import and Export Limited (DLY METAL ROOFING MACHINE) – Roll Forming Machine – Double layer machine TR 10+Tile

0,00€

Technical Specifications:

Transmission parts: Transmission sprocket pitch: 19.05 ㎜ (i.e. 3/4), double row.
Roller group bearing seat: Model self-aligning ball bearing 2211, inner hole: φ55 ㎜.
Roller material: High quality 45 steel with hard chrome plating .
Roller material: High quality 45# steel quenched and tempered, shaft diameter: φ80 ㎜.
Cutter material: Cr12 die steel quenched.
Motor power: main engine hydraulic motor 4Kw; main engine motor 5.5kw
Cutting method: hydraulic cutting.

Application: Glazed tile + trapezoidal sheet

Out of stock

SKU: 3812 Category:
The item has not been assessed for digitalization/automation

Description

Technical Specifications:

Transmission parts: Transmission sprocket pitch: 19.05 ㎜ (i.e. 3/4), double row.
Roller group bearing seat: Model self-aligning ball bearing 2211, inner hole: φ55 ㎜.
Roller material: High quality 45 steel with hard chrome plating .
Roller material: High quality 45# steel quenched and tempered, shaft diameter: φ80 ㎜.
Cutter material: Cr12 die steel quenched.
Motor power: main engine hydraulic motor 4Kw; main engine motor 5.5kw
Cutting method: hydraulic cutting.

Application: Glazed tile + trapezoidal sheet
