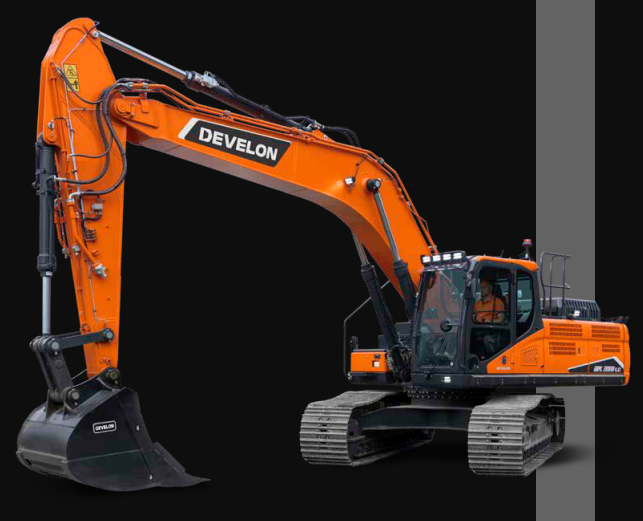

Develon – Excavators – DX300 NLC-7, Stage V engine emission standard

Description

Technical Sheet:

Designed to deliver superior performance and fuel efficiency, the
Develon DL08V diesel engine fully meets latest stage V emission
regulations. To optimise machine performance, the engine uses
high-pressure fuel injectors, air-to-air inter-cooler and electronic
engine controls. 4-Cycle Water-Cooled, Variable Geometry
Turbocharged, Diesel Oxidation Catalyst (DOC) & Selective
Catalytic Reduction (SCR) and Diesel Particulate Filter (DPF).
Model
Develon DL08V
No. of cylinders
6
Rated power at 1800 rpm
SAE J1995 202 kW (271 hp)
SAE J1349 199 kW (267 hp)
Max. torque at 1300 rpm
1275 Nm
Idle (low – high)
800 [±10] – 1900 [±25] rpm
Displacement
7640 cm³
Bore × stroke
108 mm × 139 mm
Starter
24 V / 6 kW
Batteries – Alternator
2 × 12 V, 150 Ah – 24 V, 80 A
Air filter
Double element air cleaner and pre-filtered Cyclone Turbo dust
separator
