Description
Technical Specifications:
| Parameter |
Value |
| Series |
Unitherm 4 Split, R32 |
| Type |

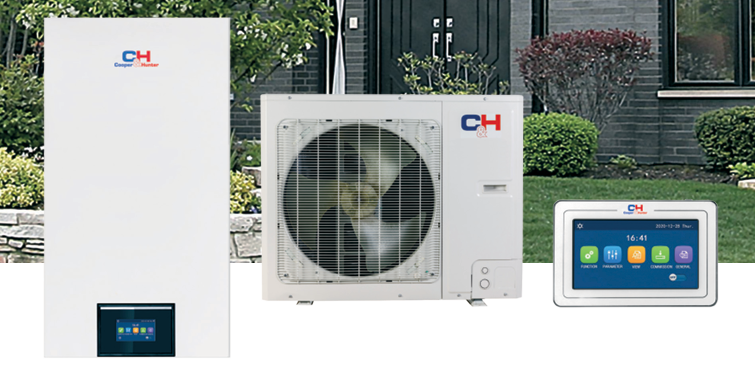

Air-to-water heat pump (split; outdoor + indoor hydromodule) |
| Power supply |
~220–240 V / 50 Hz / 1 Ph |
| Refrigerant |
R32 (charge 1.84 kg) |
| Heating capacity |
15.5 kW (at conditions* W30/35 °C, outdoor +7 °C) |
| Cooling capacity |
13.0 kW (at conditions* W23/18 °C, outdoor +35 °C) |
| Power input |
Heating 3.44 kW / Cooling 3.60 kW |
| CO |
4.50 (rated); 3.62 at W40/45 conditions** |
| EER |
3.60 (rated); 2.57 at W12/7 conditions** |
| E-heater (built-in, heating) |
3 + 3 kW; DHW E-heater (external) 3 kW |
| Max water temperature |
up to ~+48 °C (operating envelope −25…+48 °C) |
| Sound pressure |
68 dB(A) |
| Dimensions |
Indoor 460×318×860 mm; Outdoor 940×460×820 mm |
| Net weight |
Indoor 62 kg; Outdoor 110 kg |
| Pipe (liquid/gas) |
1/4″ (6.35 mm) / 5/8″ (15.9 mm); water 1″ Male BSP |
| Features |
2-stage compressor, intelligent defrosting, self-diagnostics, auto-protection, anticorrosive coating, Wi-Fi, wired controller, BMS-ready |
