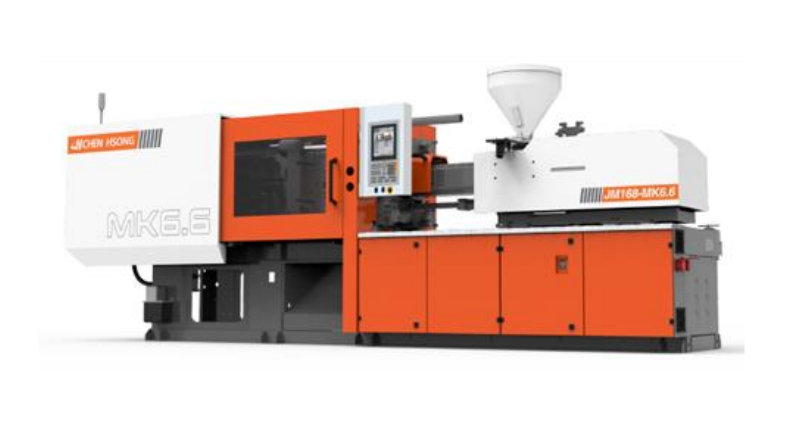

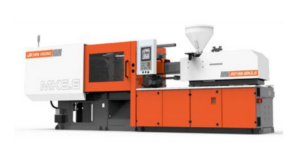

Chen Hsong – Injection moulding machines – JM Master JM658-MK6.6

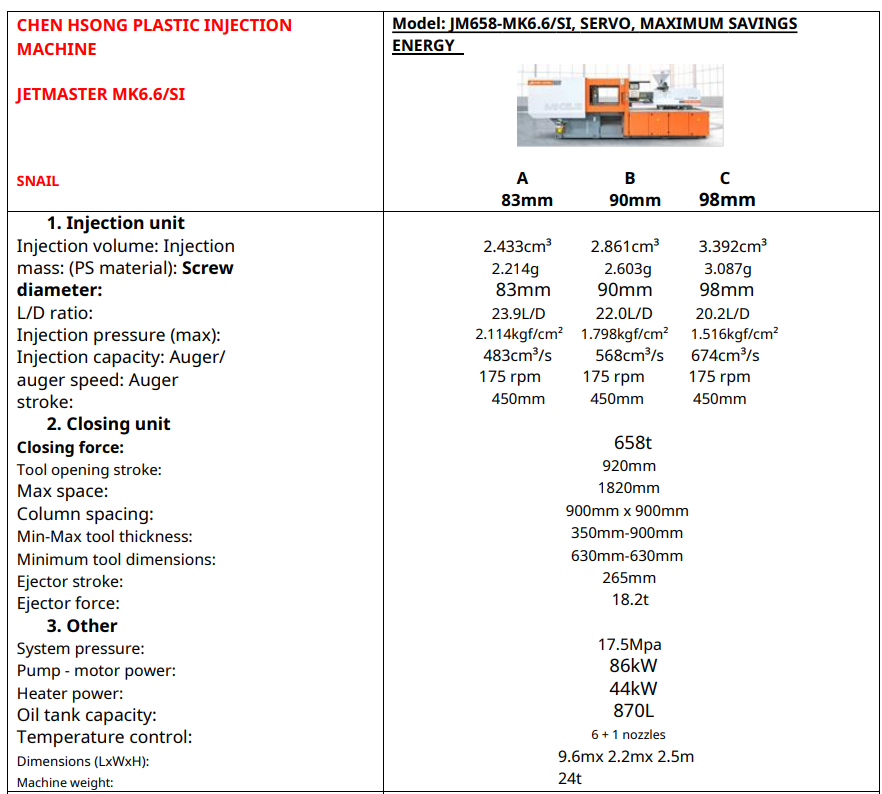

Technical Specification:

  • Clamping force: 658 tons​

  • Injection volume: 2,861 cm³ (90mm screw)​

  • Screw diameter: 83/90/98 mm options​

  • Tie bar spacing: 900 x 900 mm​

  • Dimensions (L x W x H): 9.6 x 2.2 x 2.5 m​

  • Weight: 24 tons​

  • Pump motor: 86 kW​

  • Heater power: 44 kW​

  • Servo drive savings: Up to 80% vs. traditional machines; real-world 270-400 Wh/kg plastic (varies by material/cycle/mold)





SKU: 3701 Category:
The item has been assessed for digitalization/automation

Description

Technical Specification:

  • Clamping force: 658 tons​

  • Injection volume: 2,861 cm³ (90mm screw)​

  • Screw diameter: 83/90/98 mm options​

  • Tie bar spacing: 900 x 900 mm​

  • Dimensions (L x W x H): 9.6 x 2.2 x 2.5 m​

  • Weight: 24 tons​

  • Pump motor: 86 kW​

  • Heater power: 44 kW​

  • Servo drive savings: Up to 80% vs. traditional machines; real-world 270-400 Wh/kg plastic (varies by material/cycle/mold)
