Description
Techinacal Sheet:

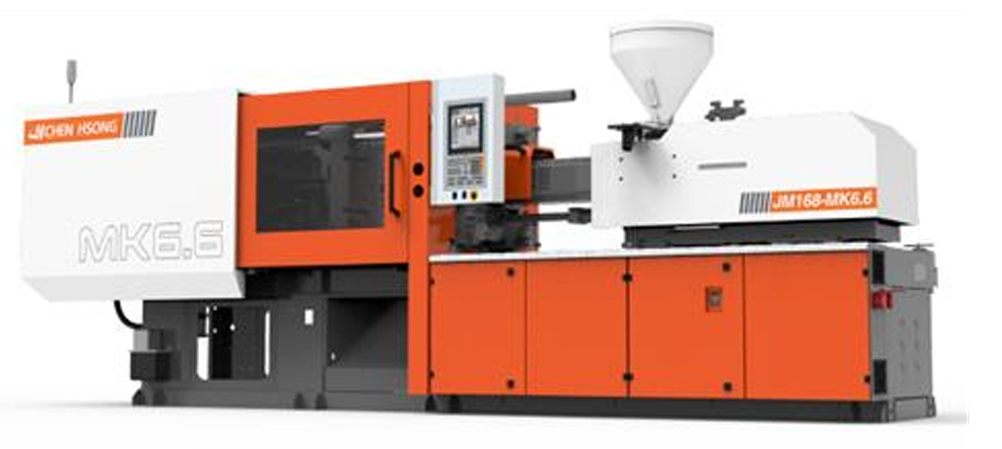

- Model: JM268-MK6.6/SI
- Type: Servo-driven plastic injection molding machine
- Designed for maximum energy savings
- Clamping Unit
- Mold opening stroke: 530 mm
- Maximum daylight opening: 1,140 mm
- Distance between tie bars: 580 × 580 mm
- Mold thickness range: 195–610 mm
- Ejector stroke: 170 mm
- Ejector force: 7.7 t
- System pressure: 17.5 MPa
- Pump/motor power: 35 kW
- Heater power: 19.6 kW
- Oil tank capacity: 400 L
- Temperature control zones: 4 + 1 nozzle
