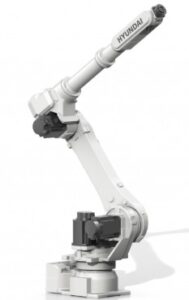

Casarini Robotica Srl. – Robots – Robotic welding cell, orbital model Hyundai HA006L

Description

Technical specifications:

Architecture: multiprocessore R.I.S.C.

Controlled axes: 6-axis robot (expandable to 16 simultaneous axes)

Storage capacity: 17,000 robot points

Internal memory: solid state

External memory: USB Memory

Program Selection: 9999 programs available

Programming display: LCD Color Windows CE

Interfacing: RS232C/RS422/Ethernet

Inputs/Outputs: digital 256 input/256 output

Panel power supply: 400 VAC 50Hz

Number of axles: 6 articulated

Working radius: 1.994 mm

Worn on the wrist: 6 Kg

Brakes: on 6 axes

Repetitiveness: +/-0,06 mm

Power: 19.02 KW
