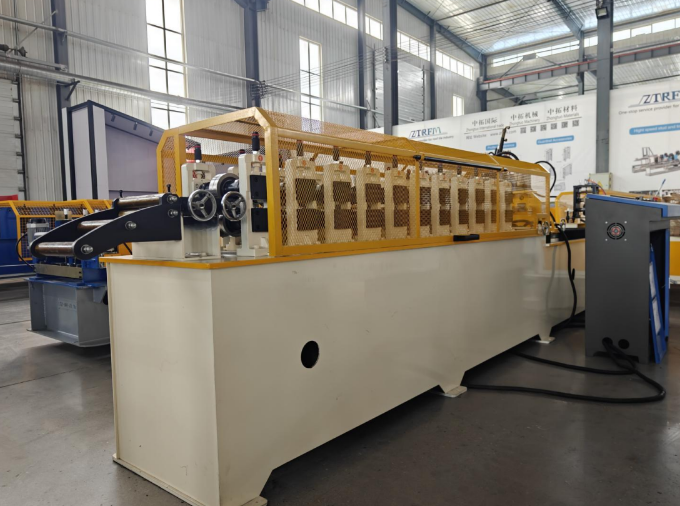

CANGZHOU ZHONGTUO INTERNATIONAL TRADE CO., LIMITED – ALU L corner production line – cnzt004

Part 1 1.5 decoiler with leveller  Hydraulic

Loading capacity 1.5 ton oil inner diameter 450-550 mm (adjustable)

Coil max width 300 mm
Part 2 High speed punching machine set 1 35m/min

Punching speed: 35m/min
Punching die: Gcr 12
punching brand: Zhongtuo
Part 3 Roll forming system set 1 Gear transmission

Rolling shaft Shaft material: 45# steel
Shaft diameter: 40 mm
Tempering treatment
Roller Roller material: Cr12
Quenched treatment
Rolling station number 14 stations
Work speed 0-35m/min with punching
Machine frame Vertical iron arch casting frame structure
Work power 5.5kw
Transmission By Gear

Part 4 Hydraulic oil station set 1
Part 5 PLC control system set 1

Frequency brand Delta (original)
PLC brand Delta (original)
Screen type Touch screen & buttons
Screen language English/Chinese
Encoder Omron
Low pressure electrical part brand Schneider
Function Cutting length and quantity control, speed adjustment
control
Part 6 Auto stacker set 1 4m length
