Technical Sheet:
- Nail making machine nail length range: 25mm-100mm (some accessories need to be replaced)
- Nail making machine maximum nail making speed: 800 pcs/min.
- Nail making machine nail diameter range: 1.8mm-3.5mm
- Power consumption & electrical specs: Host motor power 5.5 kW plus 1.5 kW for the material rack motor; however, measured total power consumption is < 4 kW, with rated power up to 7 kW at 380V, 3-phase, 50 Hz.
- Automated nail-making process: Fully automated sequence including wire feeding, straightening, cutting, nail head forming (stamping), and synchronized discharge via belts—enabling continuous, high-efficiency production.
- Drive system & transmission: Equipped with multiple timing and synchronous belts (e.g., HTD8, AT5) ensuring precise motion control, stable feeding, and synchronized cutting/forming operations.

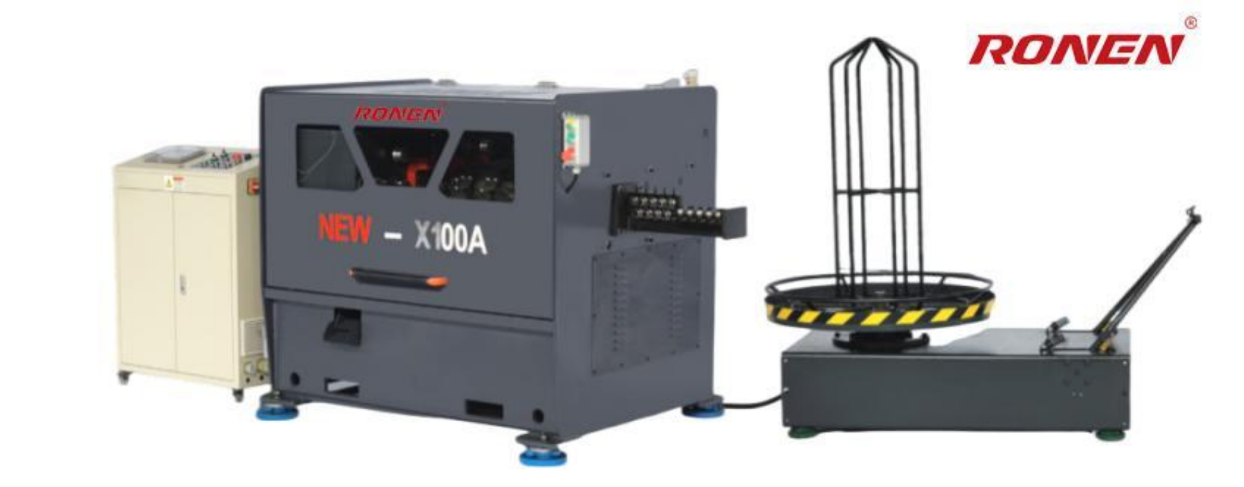

- Machine configuration & dimensions: Compact industrial setup with main unit (1500×1240×1320 mm), auxiliary rack and electrical cabinet; total machine weight around 2800 kg, supporting robust operation.
- Automation & integration features: Includes PLC control, automatic wire pay-off (up to 1.5 tons), protective covers, and compatibility with fully integrated production lines in large-scale manufacturing environments.
