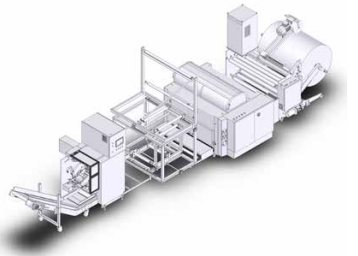

AMUTEC s.r.l – Bag making machine – TSA-ROLER 1380

Minimum material width:
200 mm

Maximum material width:
1300 mm

Minimum bags length:
200 mm

Maximum bags length:
50.000 mm

Minimum material thickness:
2 × 8 μm

Maximum material thickness:
4 × 80 μm

Maximum cycling speed:
300 strokes/min

Maximum linear speed:
180 m/min

Maximum winding roll diameter:
120 mm

Minimum winding roll width:
100 mm

Maximum winding roll width:
440 mm

Power supply:
3 × 400 V 50 Hz + Neutral + Earth

Maximum installed power:
14 kW

Compressed air:
Min: 6 Bar
