3 BOOT REMOTE CONTROL HEAVY TYPELOG CAR (ÖE-UKTA-100)

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [175.77 KB]

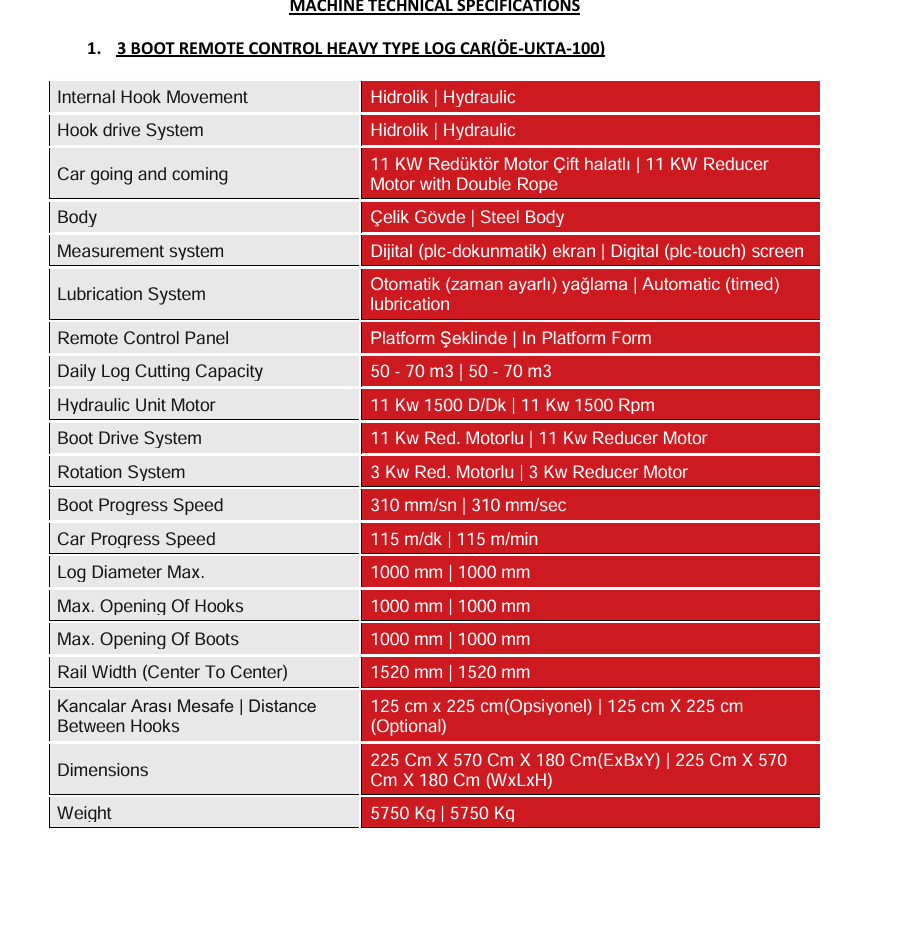

Technical Specifications:

• Internal hook movement: Hydraulic
• Hook drive system: Hydraulic
• Car movement (forward/reverse): 11 kW reducer motor with double rope
• Body: Steel body
• Measurement system: Digital PLC touch-screen display
• Lubrication system: Automatic timed lubrication
• Remote control panel: Platform-type design
• Daily log cutting capacity: 50–70 m³/day
• Hydraulic unit motor: 11 kW, 1500 rpm
• Boot drive system: 11 kW reducer motor
• Rotation system: 3 kW reducer motor
• Boot progress speed: 310 mm/s
• Car progress speed: 115 m/min
• Maximum log diameter: 1000 mm
• Maximum hook opening: 1000 mm
• Maximum boot opening: 1000 mm
• Rail width (center-to-center): 1520 mm
• Distance between hooks: 125 cm × 225 cm (optional)
• Dimensions (W × L × H): 225 cm × 570 cm × 180 cm
• Weight: 5750 kg
