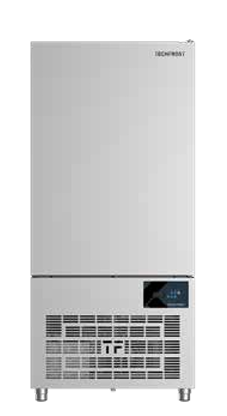

Techfrost SRL - Blast chillers/blast freezers using GAS R290 - EC 15

Techfrost SRL – Blast chillers/blast freezers using GAS R290 – EC 15

0,00€

Technical Specifications:

Parameter Value
Type Upright fridge GN 2/1, 1 door, 700 L
Refrigerant R-290a (hydrocarbon HC), charge 100 g
Insulation 80 mm, CFC-free
Operating temperature 0 / +8 °C
Power supply 230 V
Electrical power 298 W
Refrigerating power 174 W/h
Annual consumption 573 kWh/a
Energy class C
Climate class IV (ambient 43 °C)
Dimensions 700 × 830 × 2095 mm; weight 120 kg
Parameter Value
Code 15A01004G
Capacity 15 trays GN 1/1 – EN 600×400
Operating temperature −40 / +10 °C
Blast chilling 90 °C → +3 °C in 90′ = 65 kg
Blast fre 90 °C → −18 °C in 240′ = 45 kg
Power supply 400 V / 3 Ph / 50–60 Hz
Power rating 2.4 kW / 6 A
Cooling capacity (−10 °C/+45 °C) = 3,692 W; (−40 °C/+45 °C) = 844 W
External dimensions L 820 × D 799 × H 1809 mm
Internal dimensions L 700 × D 515 × H 1092 mm
Refrigerant R290 (GWP 3)

Out of stock

SKU: 4044 Category:
The item has not been assessed for digitalization/automation

Description

Technical Specifications:

Parameter Value
Type Upright fridge GN 2/1, 1 door, 700 L
Refrigerant R-290a (hydrocarbon HC), charge 100 g
Insulation 80 mm, CFC-free
Operating temperature 0 / +8 °C
Power supply 230 V
Electrical power 298 W
Refrigerating power 174 W/h
Annual consumption 573 kWh/a
Energy class C
Climate class IV (ambient 43 °C)
Dimensions 700 × 830 × 2095 mm; weight 120 kg
Parameter Value
Code 15A01004G
Capacity 15 trays GN 1/1 – EN 600×400
Operating temperature −40 / +10 °C
Blast chilling 90 °C → +3 °C in 90′ = 65 kg
Blast fre 90 °C → −18 °C in 240′ = 45 kg
Power supply 400 V / 3 Ph / 50–60 Hz
Power rating 2.4 kW / 6 A
Cooling capacity (−10 °C/+45 °C) = 3,692 W; (−40 °C/+45 °C) = 844 W
External dimensions L 820 × D 799 × H 1809 mm
Internal dimensions L 700 × D 515 × H 1092 mm
Refrigerant R290 (GWP 3)
