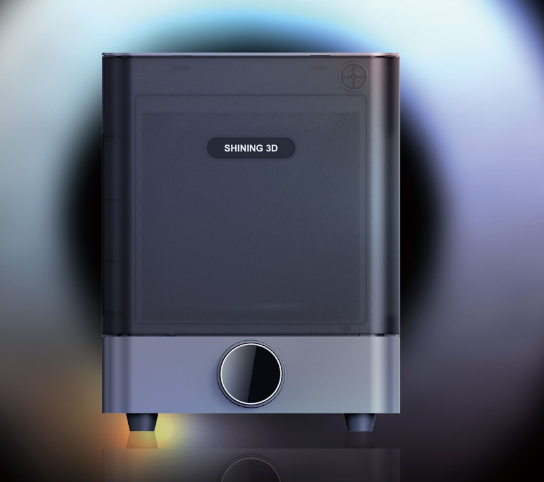

Shining – Dental post curing furnace – Fabcure 2

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [1.16 MB]

Technical Sheet:

• UV post‑curing unit designed for resin 3D printed parts, especially dental applications
• 30 multi‑directional UV LEDs provide uniform curing from sides and bottom
• UV wavelength range of 385–405 nm for optimal resin polymerization
• Total LED output power of 70 W enables fast and efficient curing
• Integrated ceramic heating system with multiple temperature sensors
• Precisely controlled maximum curing temperature up to 60 °C
• Operating ambient temperature range from 10 to 30 °C
• Maximum curing volume of Ø210 mm × 180 mm height
• Power: 150 W
