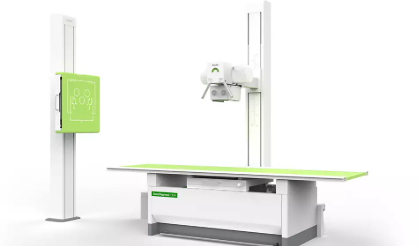

Technical Sheet:
- Wireless Digital Flat Panel Detector –
- 50 kW at 380–415 VAC, 50/60 Hz; max tube voltage of 150 kV; mAs range 0.4–500 mAs; with Automatic Exposure Control (AEC) and Anatomically Programmed Radiography (APR)
- radiographic table – 229×75.5 cm floating top, max load 200 kg, longitudinal travel ±430 mm, transverse travel ±111 mm, with removable grid and 3 AEC measurement chambers
- ELEVA Workspot workstation – Windows 10, 16 GB RAM, 480 GB SSD, 19″ touch TFT LCD, ~10,000 image storage, full DICOM package (Print, WLM, MPPS, Media Export), UNIQUE 2 multi-resolution image processing at 16-bit depth
