Description
Heavy Duty Rakes

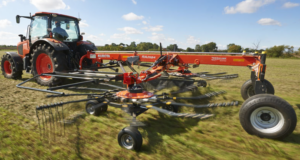

The RA2580, RA2584, RA2590 Hydro and RA2590 Pro are heavy duty two-rotor rakes with working widths up to 8.0, 8.4 and 9.0m. They are designed for the toughest conditions and feature a high performance oilbath gearbox and a strong carrier frame. The hydraulically adjustable working and swath width and ability to make sharp turns of up to 80° are important features of these rakes.
Due to the Hydro axle RA2590 Hydro has a transport height of less than 4.0m, even without detaching the tine arms, which is also the case for RA2580.
On-the-Go Rotor Height Adjustment
A ComfortKit is optionally available for RA2580 and standard on RA2590 Pro. This includes a handheld joystick control, where the height of each rotor is controlled electronically and shown on the screen of the control box.
The Advantages:
- Working widths of 8.0, 8.4 and 9.0m
- ProLine oilbath gearbox
- TerraLink Quattro for perfect ground followings
- Hydraulically adjustable working width
- Active wheel steering with 80° turning angle for easy manoeuvrability.
- ComfortKit rotor height adjustment on selected models.
- Model RA1032 RA1035 RA1039 RA1043 RA1546 RA2064
CompactLine ● ● ● ●-●
ProLine—- ●
Dimensions & weight
Working width (m) 3.20 3.50 3.90 4.30 4.60 6.35
Transport width (m) 1.60 1.75 1.75 2.10 2.15 2.80
Transport length (m) 3.10 3.35 3.60 3.85 3.35 5.90
Parking height (m) 1.60 1.70 1.85 2.00 2.75 3.85
Weight (kg) 315 420 460 480 670 1510
Swath width appr. (m) 1.20
Capacity theo. (ha/h) 3.5 3.9 4.3 4.7 5.1 6.9
Hitching system
Pivoting 3-pt headstock (CAT) 1/2 1/2 1/2 1/2 2
Lower links (2-pt.)—–●
Linkage drawbar——
Gauge wheel 16° ◦ ◦ ◦ ◦ ◦
Rotors/Tine arms/Tines
Rotor diameter (m) 2.60 2.80 3.05 3.35 3.65 3.00
Swath delivery left left left left left centre
Number of rotors 1 1 1 1 1 2
Number of arms per rotor 9 10 11 12 13 10
Number of double tines/arm 3 4 4 4 4 4
Tine diameter (mm) 9 9 9 9 10 9
Continuous cam track—- ●
Detachable tine arms ● ● ● ● ●
Height adjustment rack trail mech. mech. mech. hydr. mech.
Wheels and axles
Tyre (rotors) 15×6.00-6 16×6.50-6 16×6.50-6 16×6.50-6 16×6.50-6 16×6.50-6
Fixed tandem axle ◦ ◦ ◦ ◦ ● ◦
Pivoting tandem axle—- ◦
Stand. tyres (carrying frame)—–10.0×75-15.3
Opt. tyres (carrying frame)——
Optional equipment
Carrier arm compensating ◦ ◦ ◦ ◦ ●
Locking catch for slopes ◦ ◦ ◦ ◦ ●
Safety accessories
Warning panels ◦ ◦ ◦ ◦ ◦ ●
Road lights ◦ ◦ ◦ ◦ ◦
