Description
Technical Sheet:

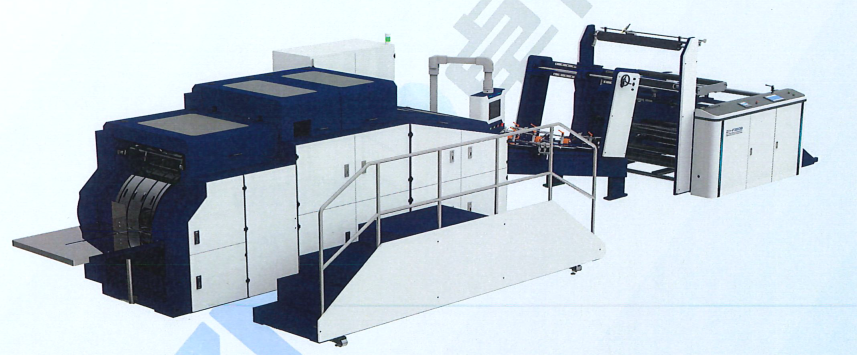

Model Model ZD-FN380
Roll paper width 580-1270 mm
Max. dia of roll paper $ 1500 mm
Inside diameter of paper $ 76 mm
Paper gram 60/80-150g/m²
Finished bag width 180-380mm
Paper tube length 230-655mm
Bag bottom width 75-240mm
Max production speed 200 bags/min
Working air current 0.6-0.8Mpa
Machine total power Total power 380V 3P4L 18KW
Machine weight Weight 10900 KG
Overall dimensions 9000*4100*2000 mm
