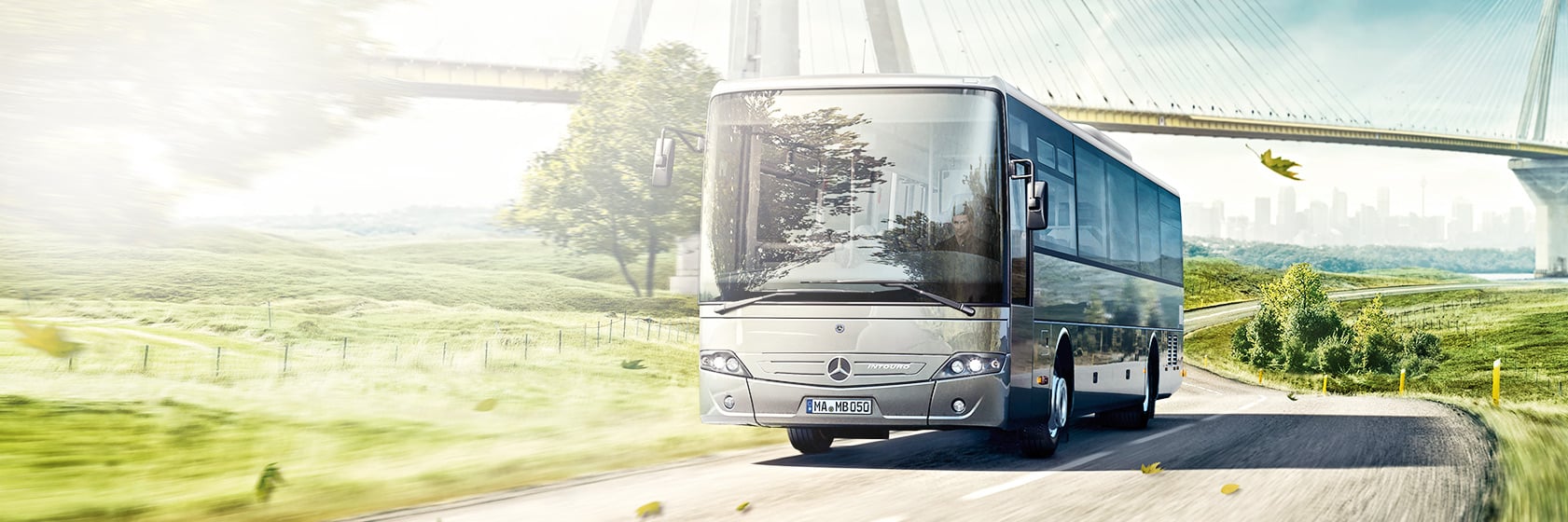

Merzedes-Benz - EURO 6 Bus 220 kW - INTOURO

Merzedes-Benz – EURO 6 Bus 220 kW – INTOURO

0,00€



Mercedes-Benz Intouro Specifications & Technical Data (2019-2021) | LECTURA Specs

Dimensions
Length [mm] 12.140 12.640
Width [mm] 2.550 2.550
Height [mm] including air conditioning**** approx. 3.355 approx. 3.355
Height [mm] with standard roof attachments** – approx. 3.260
Wheelbase front axle-driven axle [mm] 6.080 6.580
Tyre size 295/80 R 22,5 295/80 R 22,5
Front overhang [mm] 2.760 2.760
Rear overhang [mm] 3.300 3.300
Angle of approach [°] 7,65 7,65
Angle of departure [°] 7,0 7,0
Turning circle [mm] approx. 20.980 approx. 22.250
Engine & output
Engine Mercedes-Benz OM 936 Mercedes-Benz OM 936 BlueEfficiency Power
EU emissions standard Euro VI Euro VI
System – BlueTec®
Output [kW] max. 220 220
Displacement [cm³] 7.700 7.700
Cylinders / arrangement 6 / vertical, in-line 6 / vertical, in-line
Max. torque [Nm] at engine speed 1,200 Nm at 1,200 to 1,600 rpm 1,200 Nm at 1,200 to 1,600 rpm
Transmission, type Mercedes-Benz manual, 6-speed Mercedes-Benz GO 190, 6-speed, manual with servo assistance
Engine & output*
Engine Mercedes-Benz OM 936 Mercedes-Benz OM 936
EU emissions standard Euro VI Euro VI
System – –
Output [kW] max. 260 260
Displacement [cm3] 7.700 7.700
Cylinders/ arrangement 6 / vertical, in-line 6 / vertical, in-line
Max. torque [Nm] at engine speed 1,200 Nm at 1,200 to 1,600 rpm 1,200 Nm at 1,200 to 1,600 rpm
Transmission, type Mercedes-Benz GO 250-8 (PowerShift), 8-speed, automatic/ ZF-EcoLife, 6-speed, automatic/ Voith Diwa.6, 4-speed, automatic Mercedes-Benz GO 250-8 (PowerShift), 8-speed, automatic/ ZF-EcoLife, 6-speed, automatic/ Voith Diwa.6, 4-speed, automatic
Chassis
Steering ZF power steering ZF power steering
Front axle, type ZF, independent suspension ZF, independent suspension
Driven axle, type Mercedes-Benz RO 440 Mercedes-Benz RO 440

Out of stock

SKU: 1522 Category:

Description



Mercedes-Benz Intouro Specifications & Technical Data (2019-2021) | LECTURA Specs

Dimensions
Length [mm] 12.140 12.640
Width [mm] 2.550 2.550
Height [mm] including air conditioning**** approx. 3.355 approx. 3.355
Height [mm] with standard roof attachments** – approx. 3.260
Wheelbase front axle-driven axle [mm] 6.080 6.580
Tyre size 295/80 R 22,5 295/80 R 22,5
Front overhang [mm] 2.760 2.760
Rear overhang [mm] 3.300 3.300
Angle of approach [°] 7,65 7,65
Angle of departure [°] 7,0 7,0
Turning circle [mm] approx. 20.980 approx. 22.250
Engine & output
Engine Mercedes-Benz OM 936 Mercedes-Benz OM 936 BlueEfficiency Power
EU emissions standard Euro VI Euro VI
System – BlueTec®
Output [kW] max. 220 220
Displacement [cm³] 7.700 7.700
Cylinders / arrangement 6 / vertical, in-line 6 / vertical, in-line
Max. torque [Nm] at engine speed 1,200 Nm at 1,200 to 1,600 rpm 1,200 Nm at 1,200 to 1,600 rpm
Transmission, type Mercedes-Benz manual, 6-speed Mercedes-Benz GO 190, 6-speed, manual with servo assistance
Engine & output*
Engine Mercedes-Benz OM 936 Mercedes-Benz OM 936
EU emissions standard Euro VI Euro VI
System – –
Output [kW] max. 260 260
Displacement [cm3] 7.700 7.700
Cylinders/ arrangement 6 / vertical, in-line 6 / vertical, in-line
Max. torque [Nm] at engine speed 1,200 Nm at 1,200 to 1,600 rpm 1,200 Nm at 1,200 to 1,600 rpm
Transmission, type Mercedes-Benz GO 250-8 (PowerShift), 8-speed, automatic/ ZF-EcoLife, 6-speed, automatic/ Voith Diwa.6, 4-speed, automatic Mercedes-Benz GO 250-8 (PowerShift), 8-speed, automatic/ ZF-EcoLife, 6-speed, automatic/ Voith Diwa.6, 4-speed, automatic
Chassis
Steering ZF power steering ZF power steering
Front axle, type ZF, independent suspension ZF, independent suspension
Driven axle, type Mercedes-Benz RO 440 Mercedes-Benz RO 440
