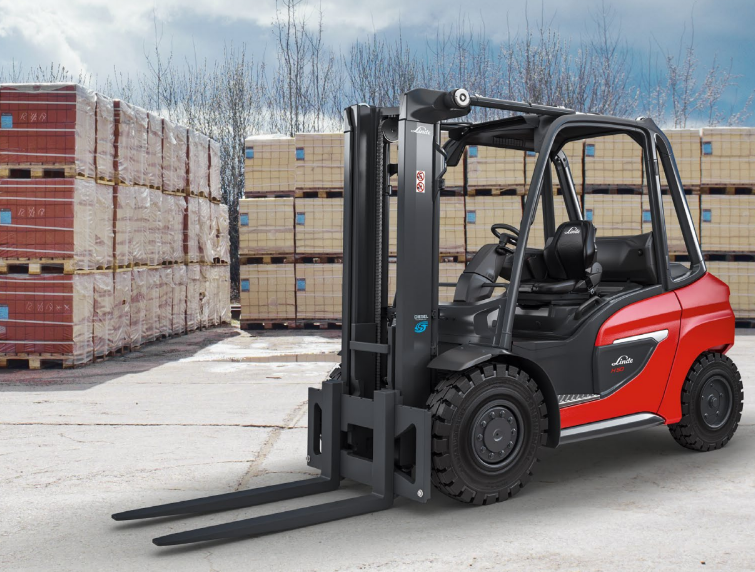

Technical Specifications:
1.5 Rated capacity/rated load Q (t) 4.5
1.6 Load centre distance c (mm) 600
1.8 Load distance, centre of drive axle to fork x (mm) 535
1.9 Wheelbase y (mm) 2070
2.1 Service weight kg 6706
2.2 Axle loading, laden front/rear kg 9973/1233
2.3 Axle loading, unladen front/rear kg 3005/3701
3.1 Tyres: solid rubber, superelastic, pneumatic,polyurethane SE
3.2 Tyre size, front 315/70-15 (300-15)
3.3 Tyre size, rear 250/70-15 (250-15)
3.5 Wheels, number front/rear (x = driven wheels) 2x/2
3.6 Tread, front b10 (mm)1190
3.7 Tread, rear b11 (mm) 1123
4.1 Mast/fork carriage tilt, forward/backwards α/β (°) 5.0/8.01)
4.2 Mast height, lowered h1 (mm) 24742)
4.3 Free lift h2 (mm) 150
4.4 Lift h3 (mm) 3100
4.5 Mast height, extended h4 (mm)4023
4.7 Height of overhead guard (cabin) h6 (mm) 2456
4.8 Seat height relative to SIP/stand height h7 (mm) 1341
4.12 Coupling height h10 (mm) 675
4.19 Overall length l1 (mm) 4326
4.20 Length to fork face l2 (mm) 3126
4.21 Overall width b1/b2 (mm) 1448/1410
4.22 Fork dimensions DIN ISO 2331 s/e/l (mm) 60 × 130 × 1200
4.23 Fork carriage to ISO 2328, class/type 3 A
4.24 Fork carriage width b3 (mm) 1350
4.31 Ground clearance, laden, below mast m1 (mm) 203
4.32 Ground clearance, centre of wheelbase m2 (mm) 250
4.34.1 Aisle width for pallets 1000 × 1200 crossways Ast (mm) 45204)
4.34.2 Aisle width with pallet 800 × 1200 lengthways Ast (mm) 47204)
4.35 Turning radius Wa (mm) 2785
4.36 Inside turning radius b13 (mm) 823
5.1 Travel speed, laden/unladen km/h 24/24
5.1.1 Travel speed, laden/unladen, backwards km/h 24/24
5.2 Lifting speed, laden/unladen m/s 0.53/0.57
5.3 Lowering speed, laden/unladen m/s 0.56/0.53
5.5 Drawbar pull, laden/unladen N 25072/23786
5.7 Gradeability, laden/unladen % 23.4/27.5
5.9 Acceleration time, laden/unladen s 5.6/5.0
5.10 Service brake hydrostatic
7.1 Engine manufacturer/type Hyundai D24
7.2 Engine power according to ISO 1585 kW 55
7.3 Rated speed 1/min 2300
7.4 Number of cylinders/displacement -/cm³ 4/2393
7.5 Fuel consumption according to DIN EN 16796 l/h 4
7.5a Fuel consumption according to DIN EN 16796 kg/h – – – – –
7.5.1 CO2 equivalent according to DIN EN 16796 kg/h 12.7
7.6 Turnover output according to VDI 2198 t/h 373.0
7.7 Turnover efficiency according to VDI 2198 t/l 59.2
7.7a Turnover efficiency according to VDI 2198 t/kg – – – – –
7.8 Generator A 110.0
7.9 Vehicle electrical system voltage V 12
7.10 Battery voltage/nominal capacity (V)/(Ah) o. kWh 12V / 110AH
Drive
8.1 Type of drive unit hydrost. / stepl
Additional data
10.1 Operating pressure for attachments bar 170
10.2 Oil flow for attachments l/min 55
10.4 Fuel tank, capacity l 76
10.7 Sound pressure level LpAZ (at the operator’s seat) dB (A) 79
10.8 Towing Coupling, design/type, DIN similar DIN 15170-H
