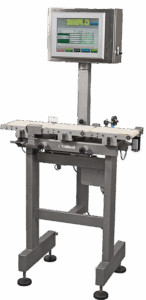

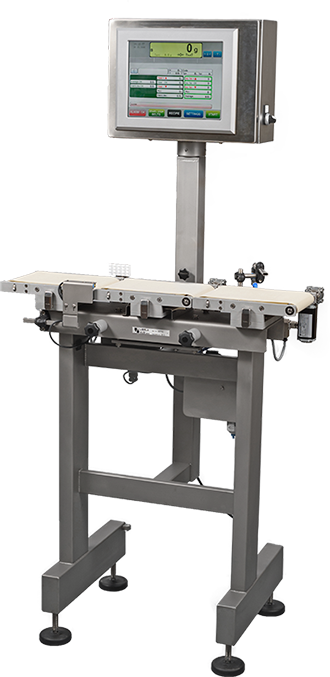

Libela Elsi – Automatic control scale – Automatic control scale KAT Series

0,00€



Technical Sheet:

Specification KAT 450/3 KAT 250/3 KAT 350/3
Packaging type PP pouch, 3‑side sealed Square kraft paper bag, vertical Square kraft paper bag, vertical
Product weight range 350 g – 1 kg 900 g – 1.1 kg 1 – 5 kg
Weighing range 300 – 1,100 g 900 – 1,100 g 900 – 5,100 g
Resolution 1 g 1 g 0.5 g
Accuracy ±1 g ±1 g ±0.5 g
Throughput capacity 50 pcs/min 100 pcs/min 60 pcs/min (1 kg) / 10 pcs/min (5 kg)
Total machine length ~1,400 mm ~860 mm ~707 mm
Belt width ~300 mm ~150 mm ~200 mm
Communication Ethernet, RS232 Ethernet, RS232 Ethernet, RS232

Out of stock

SKU: 3302 Category:
The item has not been assessed for digitalization/automation

Description

Technical Sheet:

Specification KAT 450/3 KAT 250/3 KAT 350/3
Packaging type PP pouch, 3‑side sealed Square kraft paper bag, vertical Square kraft paper bag, vertical
Product weight range 350 g – 1 kg 900 g – 1.1 kg 1 – 5 kg
Weighing range 300 – 1,100 g 900 – 1,100 g 900 – 5,100 g
Resolution 1 g 1 g 0.5 g
Accuracy ±1 g ±1 g ±0.5 g
Throughput capacity 50 pcs/min 100 pcs/min 60 pcs/min (1 kg) / 10 pcs/min (5 kg)
Total machine length ~1,400 mm ~860 mm ~707 mm
Belt width ~300 mm ~150 mm ~200 mm
Communication Ethernet, RS232 Ethernet, RS232 Ethernet, RS232
