| Model |

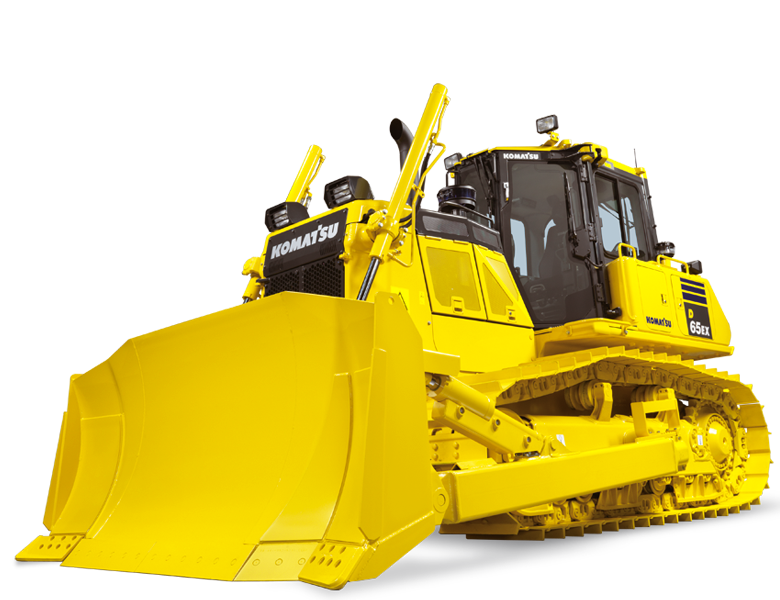

Komatsu D65EX-18 (Outer Frame) |
| General |
|
| Manufacturer |
Komatsu |
| Model |
D65EX-18 |
| Engine model / Regulation standard |
SAA6D114-6E / EU Stage V |
| Blade type (standard) |
SIGMADOZER |
| Rear equipment |
Hitch |
| Shoe width (min. / max.) (mm) |
510/660 |
| Shoe width (std) (mm) |
610 |
| Engine power (ISO 9249) (kW) |
162 |
| Operating weight (kg) |
20810 |
| Engine |
|
| Engine make |
Komatsu |
| Number of cylinders / displacement (no. / ltr) |
6/8.85 |
| Cooling fan drive |
Hydr. + cleaning mode |
| Noise level at operator ear / external (dB(A)) |
78 / 108 |
| Drivetrain |
|
| Drivetrain type |
T/C + lock up |
| Max. number of gears F/R (no.) |
4/4 |
| Speed F / R (KPH) |
11.3/13.6 |
| Minimum turning radius (m) |
1.9 |
| Final drives |
Double reduction |
| Sprockets |
Segmented |
| Undercarriage suspension type |
Oscillating |
| Track rollers / carrier rollers (no. / no.) |
7/2 |
| Type of undercarriage |
PLUS Rotating bushing |
| Type of shoes |
Single grouser |
| Shoes per side (no.) |
42 |
| Grouser height (mm) |
65 |
| Ground clearance (mm) |
415 |
| Track gauge (mm) |
1880 |
| Track length on ground (mm) |
2970 |
| Ground pressure (kg / cm2) |
0.57 |
| Hydraulic system |
|
| Hydraulic system type |
Closed Center Load Sensing |
| Type of pump |
Piston |
| Hydraulic pump capacity (ltr/min) |
248 |
| Relief valve setting (kg / cm2) |
285 |
| Number of blade tilt cylinders (no.) |
2 |
| Number of blade angle cylinder |
0 |
| Pitch function |
Hydraulic |
| Blade capacity (m3) |
5.61 |
| Blade, width × height (mm) |
3410 x 1425 |
| Max. lift above ground (mm) |
1135 |
| Max. drop below ground (mm) |
500 |
| Max. tilt adjustment (mm) |
870 |
| Max. blade angle (deg) |
0 |
| Overall machine length (mm) |
5490 |
| Overall machine height (mm) |
3160 |
