Description
Technical Specifications:
Maximum lift capacity kg 4100
Lift capacity to full height kg 2500
Lift capacity at full reach kg 1500
Lift height m 7
Reach at maximum lift height m 0.48
Maximum forward reach m 3.7
Reach with 1 tonne load m 3.7
Placing height m 6.3

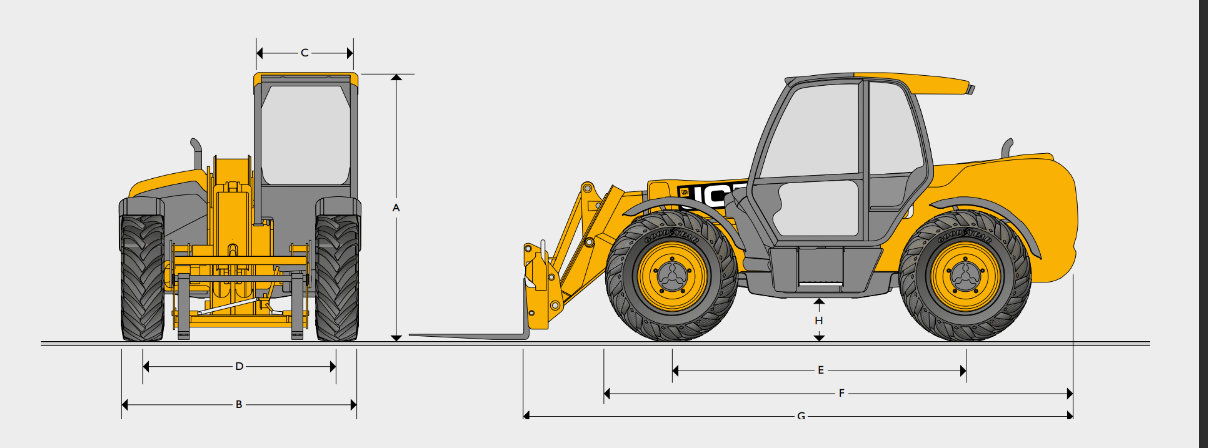

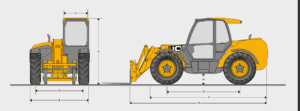

Overall height m 2.49
B Overall width (over tyres)* m 2.29
C Inside width of cab m 0.94
D Front track m 1.81
E Wheelbase m 2.75
F Overall length to front tyres m 8 4.38
G Overall length to front carriage m 4.99
H Ground clearance m 0.4
Outside turn radius (over tyres) m 3.7
Carriage rollback angle degrees 42.6
Carriage dump angle degrees 37.5
Weight kg 7800
Tyres 445/70 R24
Power 85 kW
