Description
Technical Specifications

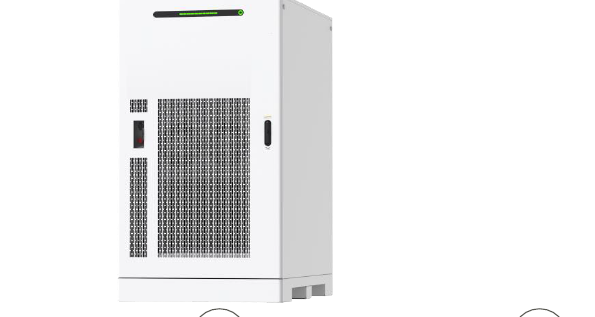

Model type LUNA2000-241-2S1
Rated capacity 241.0kWh
Maximum cycle efficiency 91.3%
Depth of charge and discharge 0~100%
Dimensions (W x D x H) 1150mm×1800mm×2100mm
Weight ＜2.8 T
Operating temperature range -30 °C ~ 55 °C (＞50°C Derating)
Storage temperature range -35 °C ~ 60 °C
Operating humidity range 0 ~ 100%RH (non-condensing)
Maximum operating altitude 4,000 m
System temperature control mode Hybrid cooling
Balance mode Active balance
SOC calibration mode Automatic
Fire suppression mode Pack-level oxygen barrier, Directional gas exhaust, Top explosion vent, Aerosol
Auxiliary power supply 176~300 Vac, single phase, ≤5 kW
Power consumption standby ≤150 W
Communication port Ethernet / Optical fiber
Communication protocol Modbus TCP
Protection degree IP55
EMC protection rating Class B
Noise (rated operating condition) ≤65 dB(A)
Lightning protection Type II (AC port)
Protection mode
Anti-islanding protection, residual current detection, insulation resistance detection, AC overcurrent
protection, and AC cable connection protection
Environment RoHS6
Certification standards
UL9540A; UN38.3; IEC 62477-1; IEC 62040-1; IEC 61000-6-1/2/3/4; IEC 62619;
IEC 60529; VDE-AR-E 2510-2/50; IEC 62933-5-1/2; IEC 61727; EN 50549; GB/T 34120
