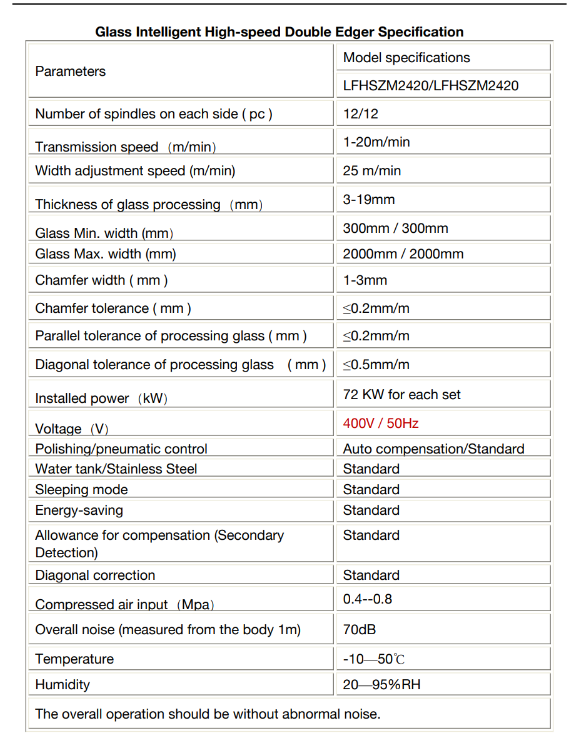

Description
- Model specifications: LFHSZM2420 / LFHSZM2420
- Number of spindles on each side: 12 / 12
- Transmission speed: 1–20 m/min
- Width adjustment speed: 25 m/min
- Glass thickness processing: 3–19 mm
- Minimum glass width: 300 mm / 300 mm
- Maximum glass width: 2000 mm / 2000 mm
- Chamfer width: 1–3 mm
- Chamfer tolerance: ≤ 0.2 mm/m
- Parallel tolerance of processed glass: ≤ 0.2 mm/m
- Diagonal tolerance of processed glass: ≤ 0.5 mm/m
- Installed power: 72 kW (per set)
- Voltage: 400 V / 50 Hz
- Polishing / pneumatic control: Auto compensation / Standard
- Water tank / stainless steel: Standard
- Sleeping mode: Standard
- Energy-saving: Standard
- Allowance for compensation (secondary detection): Standard
- Diagonal correction: Standard
- Compressed air input: 0.4–0.8 MPa
- Overall noise (measured at 1 m): 70 dB
- Operating temperature: −10 to 50 °C
- Humidity range: 20–95% RH
- Operational requirement: Must operate without abnormal noise
