Description

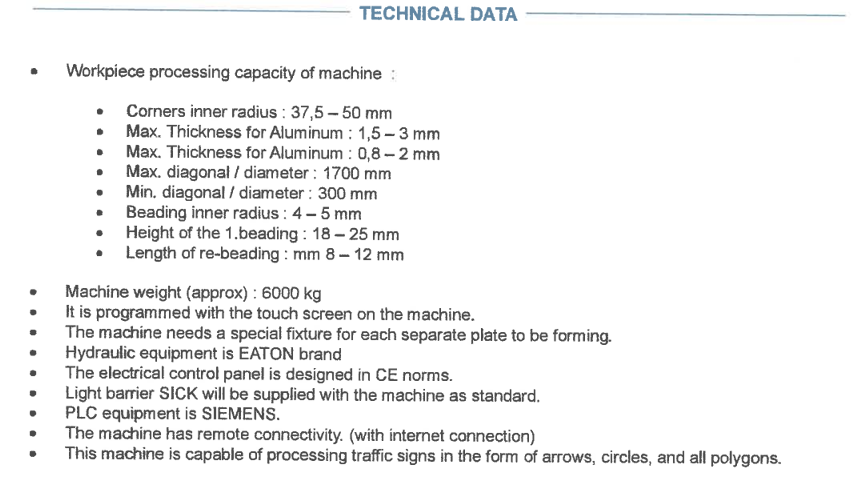

Technical Sheet:
Processing capacity: max diameter 1700 mm, min 300 mm; aluminum thickness 0.8–3 mm; inner corner radius 37.5–50 mm; beading height 18–25 mm

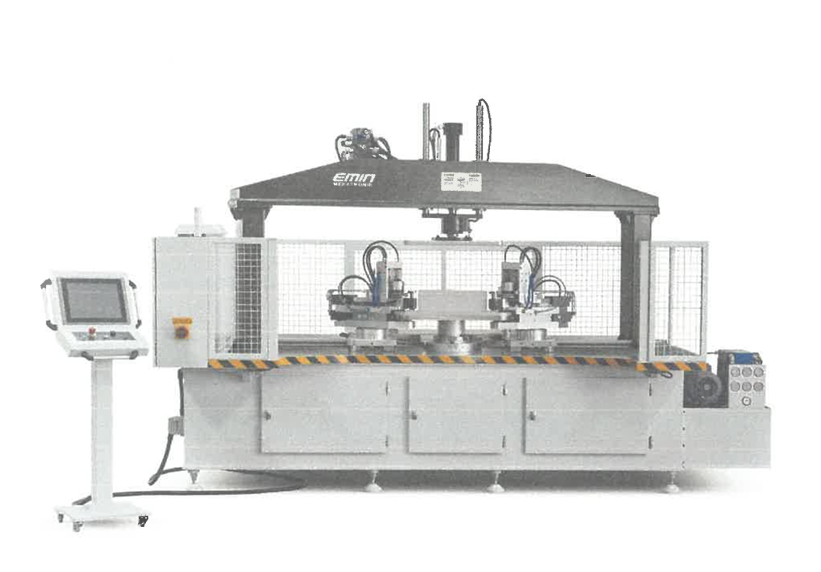

Machine configuration: Siemens PLC control, touchscreen programming, Eaton hydraulic system, CE-compliant electrical panel
Performance & integration: remote connectivity (internet-enabled), dedicated fixture required per plate, suitable for arrows, circles, and polygonal traffic signs
Physical & power data: approx. weight 6000 kg; power consumption (installed): ~16.5 kW
