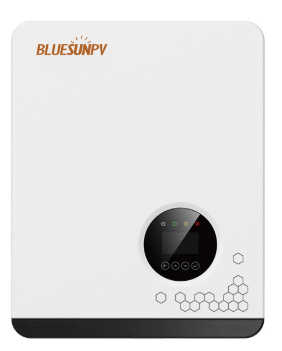

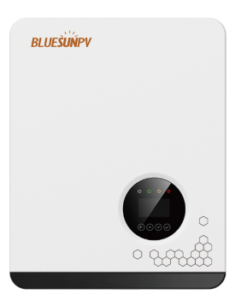

BLUESUN Solar Co., Ltd. – Inverters – BSM (25-40) K-B series

0,00€

Technical Specifications:

Parameter BSM25K-B BSM30K-B BSM40K-B
Nominal AC Power 25 kW 30 kW 40 kW
Max AC Output Power 27.5 kVA 33 kVA 44 kVA
Max DC Voltage 1100 V 1100 V 1100 V
MPPT Trackers 2 3 3
Strings per MPPT 2 2 2
Max Input Current / MPPT 30 A 30 A 30 A
Max Efficiency 98.6% 98.7% 98.7%
European Efficiency 98.3% 98.4% 98.4%
Protection Rating IP66 IP66 IP66
Operating Temperature -25°C to +60°C -25°C to +60°C -25°C to +60°C

Out of stock

SKU: 4060 Category:
The item has not been assessed for digitalization/automation

Description


Technical Specifications:

Parameter BSM25K-B BSM30K-B BSM40K-B
Nominal AC Power 25 kW 30 kW 40 kW
Max AC Output Power 27.5 kVA 33 kVA 44 kVA
Max DC Voltage 1100 V 1100 V 1100 V
MPPT Trackers 2 3 3
Strings per MPPT 2 2 2
Max Input Current / MPPT 30 A 30 A 30 A
Max Efficiency 98.6% 98.7% 98.7%
European Efficiency 98.3% 98.4% 98.4%
Protection Rating IP66 IP66 IP66
Operating Temperature -25°C to +60°C -25°C to +60°C -25°C to +60°C
